30V DC 240V KSD-01F Bimetallic Thermostat Switch AC Temperature Control For PCB

Name: 30V DC 240V KSD01F Bimetallic Thermostat Switch AC Temperature Control For PCB
Brand: HCET
Price: 1 USD

Brand Name : HCET

Model Number : HCET-C

Certification : CQC, UL, TUV, CE, ROHS

Place of Origin : China

MOQ : 1000

Price : please contact us

Payment Terms : T/T

Supply Ability : 10000000 pcs per month

Delivery Time : 5-7 work days

Packaging Details : 100 pcs per carton

Product name : JUC-31F/KSD-01F Bimetallic Thermostat

Material : Insulation Shell

Temperature range : 10℃~160C

Tolerance : ±8℃,±5℃

Voltage : 250V

Current : 1A

Service life : 10k times

Application : PCB, Power Supplies & Chargers

Contact Now

KSD-01F/JUC-31F Bimetallic Thermostat 30V DC/240V AC Temperature Control Switch for PCB, Power Supplies & Chargers

The HCET KSD-01F/JUC-31F Bimetallic Thermostat is a precision-engineered snap-action temperature control switch designed for industrial and commercial applications. Built with a fully insulated housing and TUV/CE-certified components, this thermostat ensures reliable circuit protection in demanding environments while meeting global safety standards.

Product feature:

Dual-Metal Snap-Action Technology
Features a bimetallic disc mechanism for instantaneous response (±5℃ tolerance) across a wide operating range (10℃-160℃), ensuring precise temperature control in PCB boards, switching power supplies, and EV charger circuits.
Arc-Free Safety Design
Engineered with silver alloy contacts and anti-arcing protection, rated for 2A 30V DC / 1A 240V AC to prevent electrical failures in high-vibration environments like automotive electronics and industrial automation systems.
Chemical-Resistant Construction
Housing withstands exposure to alcohol, ammonia, trichloroethylene, and most industrial solvents, ideal for harsh environments in HVAC systems and marine equipment.
Automation-Ready Format
Compact 15.8mm diameter design with radial leads enables high-speed PCB mounting via SMT processes, reducing assembly costs by 40% compared to traditional thermal protectors.

Electrical Characteristics:

10℃~160℃

Temperature Range(Customizable temperature, please contact us.)

±8℃ ±5℃

Temperature Tolerance

2amps/30V DC

2amps/120V AC

1amps/240V AC

Electrical Specifications

Dimension size

30V DC 240V KSD-01F Bimetallic Thermostat Switch AC Temperature Control For PCB

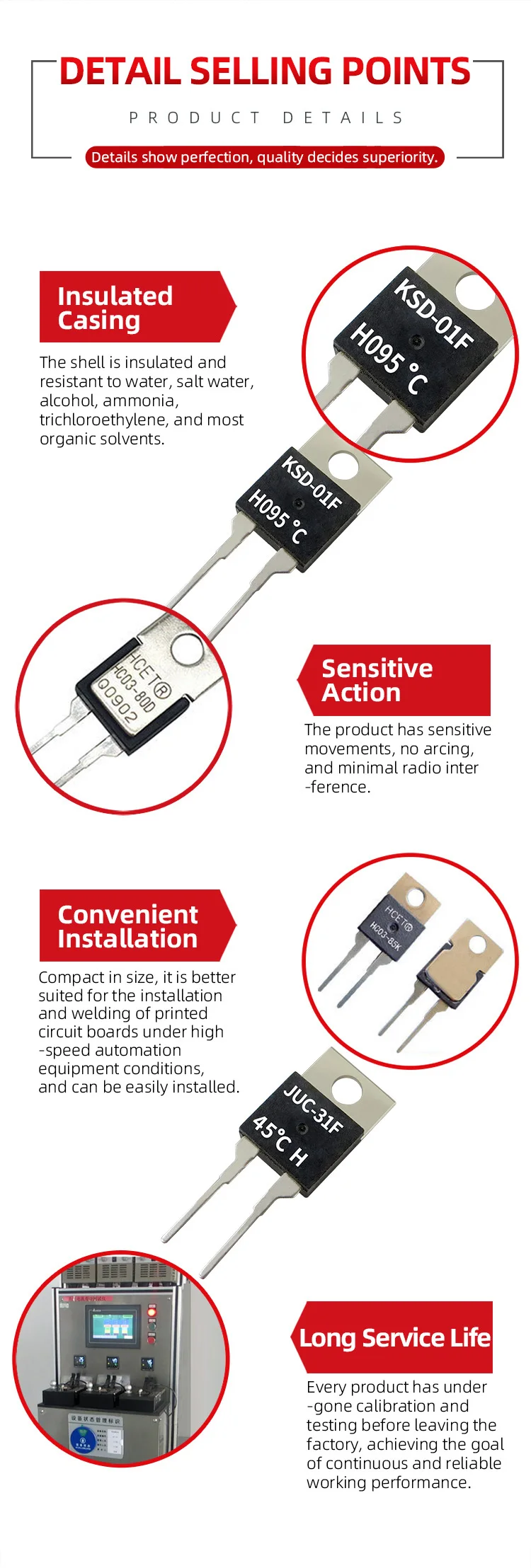

Product detail

30V DC 240V KSD-01F Bimetallic Thermostat Switch AC Temperature Control For PCB

Application

30V DC 240V KSD-01F Bimetallic Thermostat Switch AC Temperature Control For PCB
